Technical Command Center |
|
|
|
|
|
|
|
|
1. General description

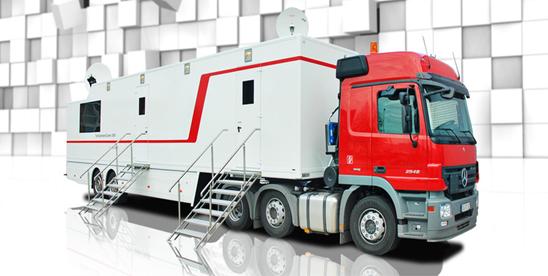

Command Trailer 1.1 Special-purpose
Vehicle - Representative, reliable
special-command vehicle with dynamic appearance - All-round pneumatic suspension to be used to safely transport
sensitive equipment and control units - The height is infinitely variable
thanks to the level control system - Single-person quick operation - Set-up time: approx. 10 minutes,
depending on configuration -
Professional, robust and proven technology from the wide range of
JUMBO-trucks 1.2 Exterior
Dimensions and Weights (all measurements approximate) *Total length:
13,600mm, depending on tractor unit *Total width:
2,550mm *Total
height:
4,000mm – can be adjusted with level control system *weight:
12.000 kg, depending on configuration *allowed total weight: 24.000 kg, depending on
configuration 1.3 Trailer - Custom-built to meet strict German
quality standards - 2 axles, air suspensioned,
9 t each, ABS / EPS - Side panels of coachwork seamless, for logo / external advertising,
surfaces will not buckle from effects of changing temperatures, suitable for
washing facilities - Complete side and rear fibre-glass panelling - Diesel heating - 4 stabilising supports on chassis - Fully painted in high German standard - Fully summer and winter compatible – also suitable for use in hot
and cold climates: *Temperature-protected installation of water tank and all pipes *Insulation *Diesel heating - Additional position, stop and flashing lights at top on rear
integrated in trailer LED-lights 1.4 Entrance-flap with glass door - 3 entry flaps, fold up to form canopy, rain drainage on side at
front - 1 window in each door - 3 sets of special entry steps, extending,
2 stainless steel hand rails, safety lock - top step as platform - 1 flap with integrated cable flap, 2 slide-out cable drums 1.5 Windows - 5 windows in side / rear-walls, tinted - vertical blind for each window - 1 window in roof of Tool Work Shop 1.6 Fibre-glass
panelling - complete side panelling, fibre-glass - rear panelling, fibre-glass 1.7 Power / Light - 1 x 400V / 32A CEE AC power feed for
external supply - Internal distribution via fuses and FI
contactor - Approx. 36 sockets in furniture’s or
cable channels, to be arranged as required - 30 fitted ceiling spots integrated in
multifunction ceiling channel, swivelling, 12V - 24V service light - 25m 400V / 32A supply cable - 1 x 50m supply cable / 230V - All wiring concealed - Electronic phase and neutral-guard 1.8 Water / kitchen - kitchen-module - stainless-steel sink - refrigerator - microwave-oven - Hot / cold water supply and drainage via integrated fresh and waste
water tanks, - Additional hygienic special direct quick-connect system to public
supply system - 25m ˝” water hose - Various trade fair adapters in special JUMBO holding system - integrated waste-bin 1.9 Heating-system - Diesel heating, 1 x 5kW for presentation area, supply from the tank
of trailer, also operates on the road and during storage, diesel pump, battery
buffer 200AH 24V, charger 2. Command Trailer Interior - Multifunctional due to system elements
for simple rearrangement - High-quality wall covering, synthetic, wipeable - Floor covering: high-quality caoutchouc - Underfloor channels prepared for
modifications and additions - Walls partitions 2.2 Rooms / interior - Rooms with entrance door with stairs - Tables and cabinets, chairs - Computer racks - Windows dark toned - Emergency / service light when unit is
not in use (2 x 12 V Battery driven) - Small rest point for Coffee space and
fridge + drinkable water tank and Wash basin plus collecting waste
water tank. (tanks isolated / frost proof) This description does not cover all of
the individual special solution details that distinguish our professional
special vehicles from all rival products of regular coach-builders, and
therefore contribute to the high level of practicality and maintenance of
value. Optional Extras and Functions for
Command Trailer Comfort air conditioning and heating
package Electrical heating register extra
strong, Slow start relay, Heat pump function Total of 10 kW cooling Total of 12 kW heating Extra powerful and quite version Each room controlled separately Underfloor storage boxes Accessible from outside, suitable for
storing Bulky objects, lockable, splash
resistant Insulation-package Extra strong walls, highest insulation, solide mounting in walls possible windows double-glassed “SUPER SILENT” diesel generator package 22kW / 26kVA
Reverse video system Wide-angle lens 130° Light sensitivity <2 Lux Resolution 266,664 pixels, colour Monitor: 5" visible screen Camera: Integrated heating against condensation formation CE—Certification How to contact us: Handelsgesellschaft Renn mbH Theodor-Heuss-Ring 15 52511 Geilenkirchen/ Germany FON: +49 / 2451 / 627200
